Factory Free sample China High Quality Bubble Washing Tomatoes Mushroom Washer with Drying Machine

Short Description:

Material cleaning and disinfection process in vegetable processing, fruit processing, beverage, canning industry, agricultural product processing, sauce processing and other fields.


Product Detail

Product Tags

The really abundant projects administration experiences and just one to one particular provider model make the substantial importance of organization communication and our easy understanding of your expectations for Factory Free sample China High Quality Bubble Washing Tomatoes Mushroom Washer with Drying Machine, Our ultimate objective is always to rank as a top brand also to lead as a pioneer inside our field. We’re sure our prosperous experience in tool generation will gain customer’s trust, Wish to co-operate and co-create an even better upcoming with you!
The really abundant projects administration experiences and just one to one particular provider model make the substantial importance of organization communication and our easy understanding of your expectations for Bubble Washer, China Bubble Washing Machine, Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Introduction:
1.The box is in the form of a water tank for cleaning raw materials, and is made of stainless steel plate with a thickness of 2mm.
2.The support frame is used to support the whole box and conveying device, and is made of 75×45×2.0mm stainless steel rectangular tube.
3.The conveyor belt is made of stainless steel mesh belt and equipped with scraper plate, which is convenient for lifting and separating water and material.
4.The conveyor belt is equipped with stainless steel chains on both sides and has tracks for easy operation.
5.The box has a built-in bubble pipe, and one end is connected to the high-pressure air pump.
6.The discharge port is equipped with a spray pipe for secondary cleaning of the material.
7.The equipment box adopts arc design, and the bottom of the box is trapezoidal bottom. 8.Equipped with water inlet, overflow outlet, drain valve and other devices.
9.Transmission parts such as motor sprockets are equipped with stainless steel protective covers.

Parameter:

Size 4000x800x1300mm
Box size 3800×1220×550mm (standard type)
Conveyor belt width 800mm
Import and export height 800mm (standard type)
Chain pitch 38.1mm
Scraper spacing 300mm
Scraper height 80mm
Production capacity 600-1200KG/H
Voltage 380V three-phase 50Hz
Power 3.75KW

Picture:

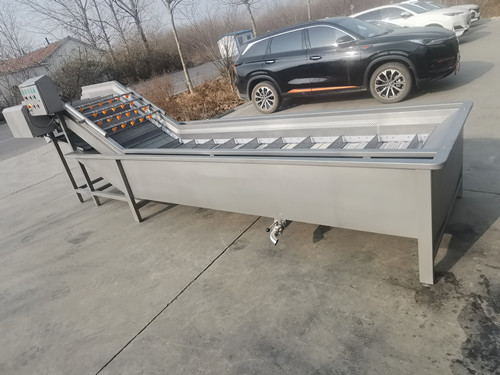

14552

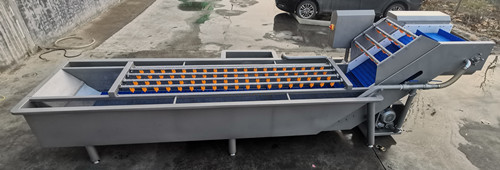

450

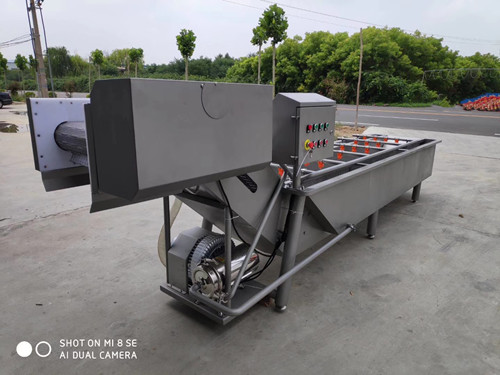

3566
